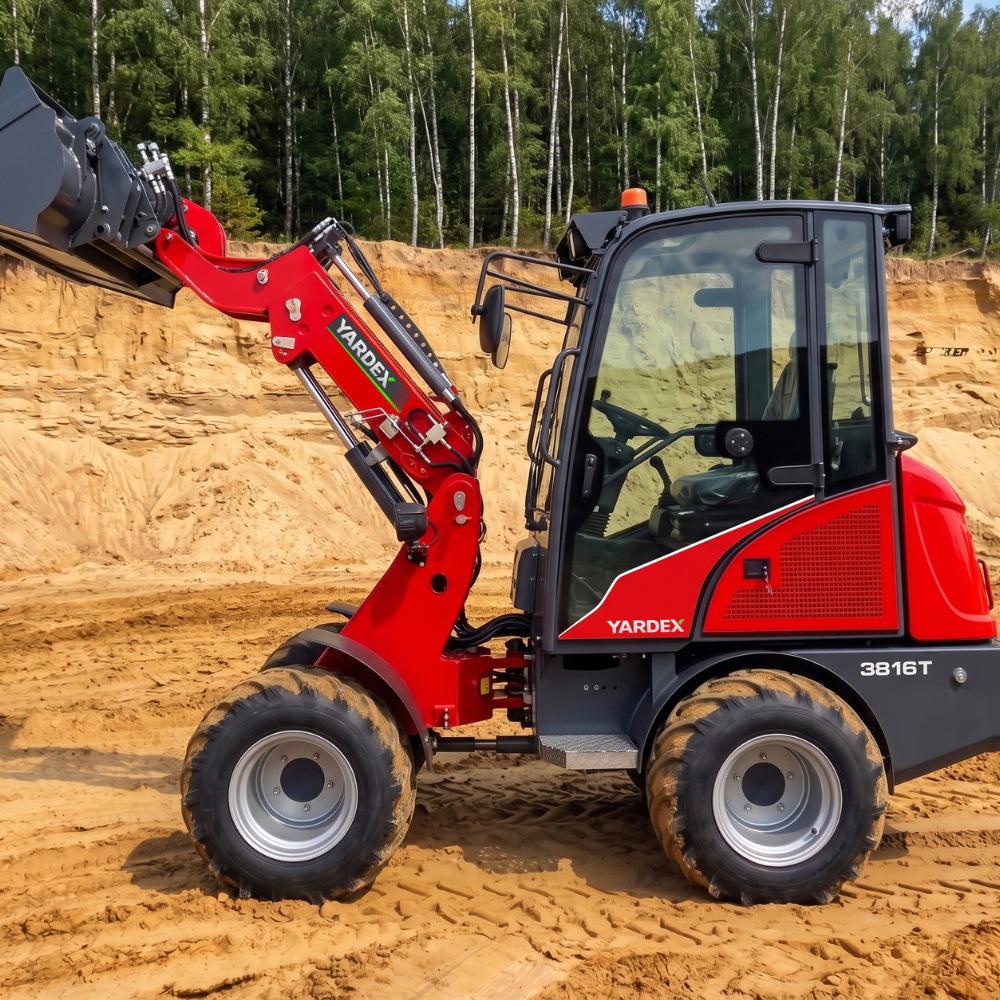

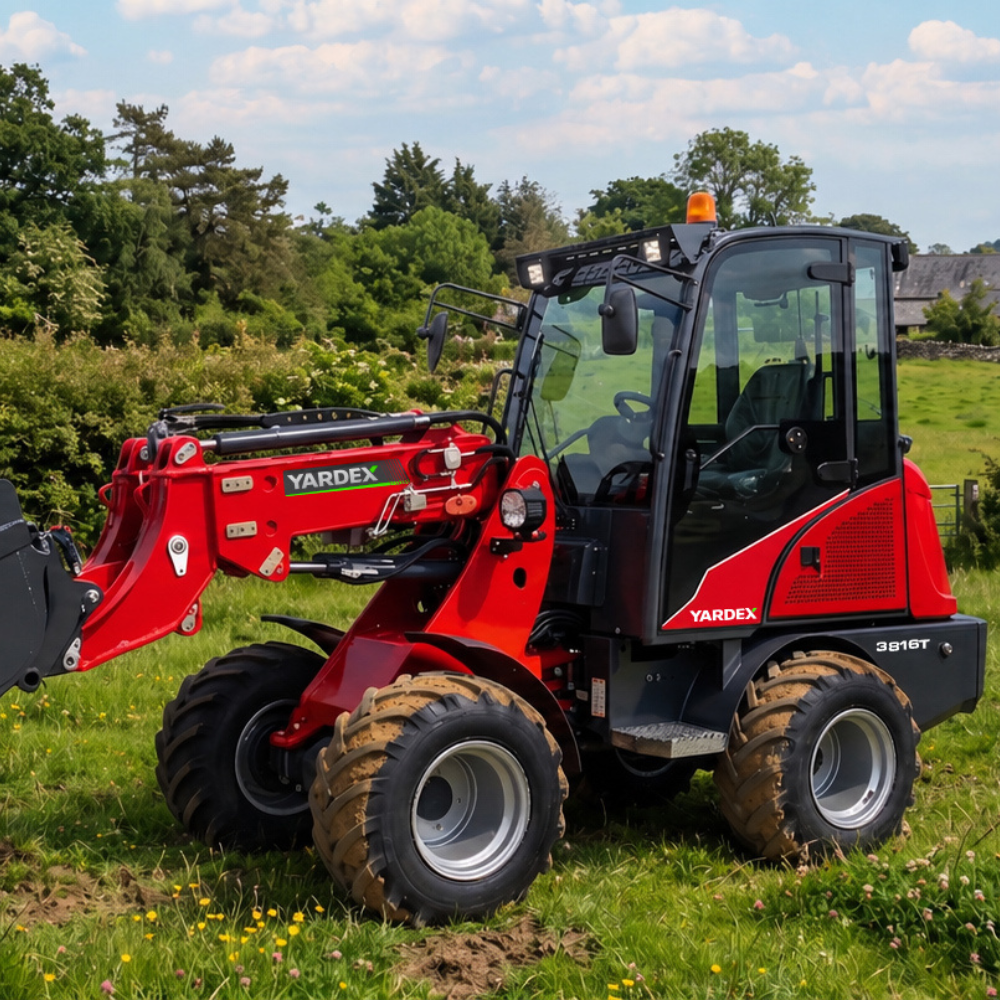

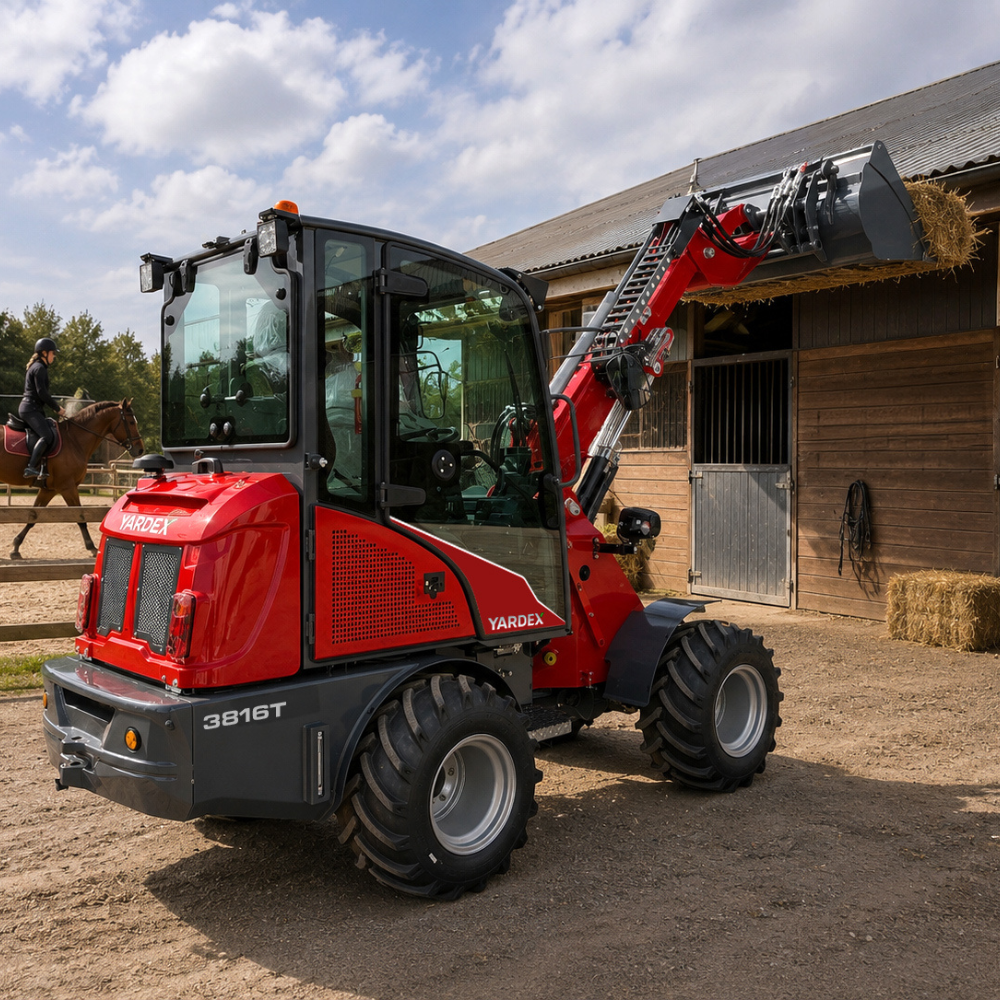

Yardex 3816T Wheel Loader
Powered by a 24hp Kubota engine and facilitated with Bondioli & Pavesi hydraulics, this agile little tele-wheel loader takes on tasks with ease, offering precise control and excellent manoeuvrability in tight spaces.
With a lifting capacity of 1.6 tonnes and a maximum lift height of 2.4 metres, the Yardex 3816T a compact and versatile machine suited to a wide range of applications in diverse environments, supported by Yardex dependendable UK & Irish parts based network.
- Yardex 3 Year Warranty As Standard
- UK CA Certified
Contact our sales team
For latest prices & availability:
Call +447926 293329
Email randmmachinery@outlook.com
detailed overview
Click for more information.
- Kubota v1505
- Inline Water Cooled Four Stroke
- Displacement: 1.8L
- Rated Power: 18.2kw
- 2300 Rpm Rated Speed
- Maximum Torque: 92.6@1700
- Driving Pump Type: Closed Piston Pump
- Driving Motor Type: Piston
- Gear Shift: 2 Electric Stepless
- Speeds: 7/18km/h
- Max Lift Capacity: 1600Kg
- Bucket Capacity: 0.38m³
- Operating Weight: 2750Kg
- Max Dump Height Main Boom: 2080mm
- Max Dump Reach Main Boom: 897mm
- Max Dump Height Small Boom: 2400mm
- Max Dump Reach Small Boom: 1227mm
- Minimum Turning Radius: 2948mm
- System Working Pressure: 18 (mpa)
- Boom Lifting Time: 3 (s)
- Total Time: 7.4 (s)
- Fuel Tank Capacity: 40L
- Function of Leveling Automatically: Yes
- Service Brake: Drum Brake
- Parking Brake: Manual Drum Brake
- Tyres: 31*15.5-15
