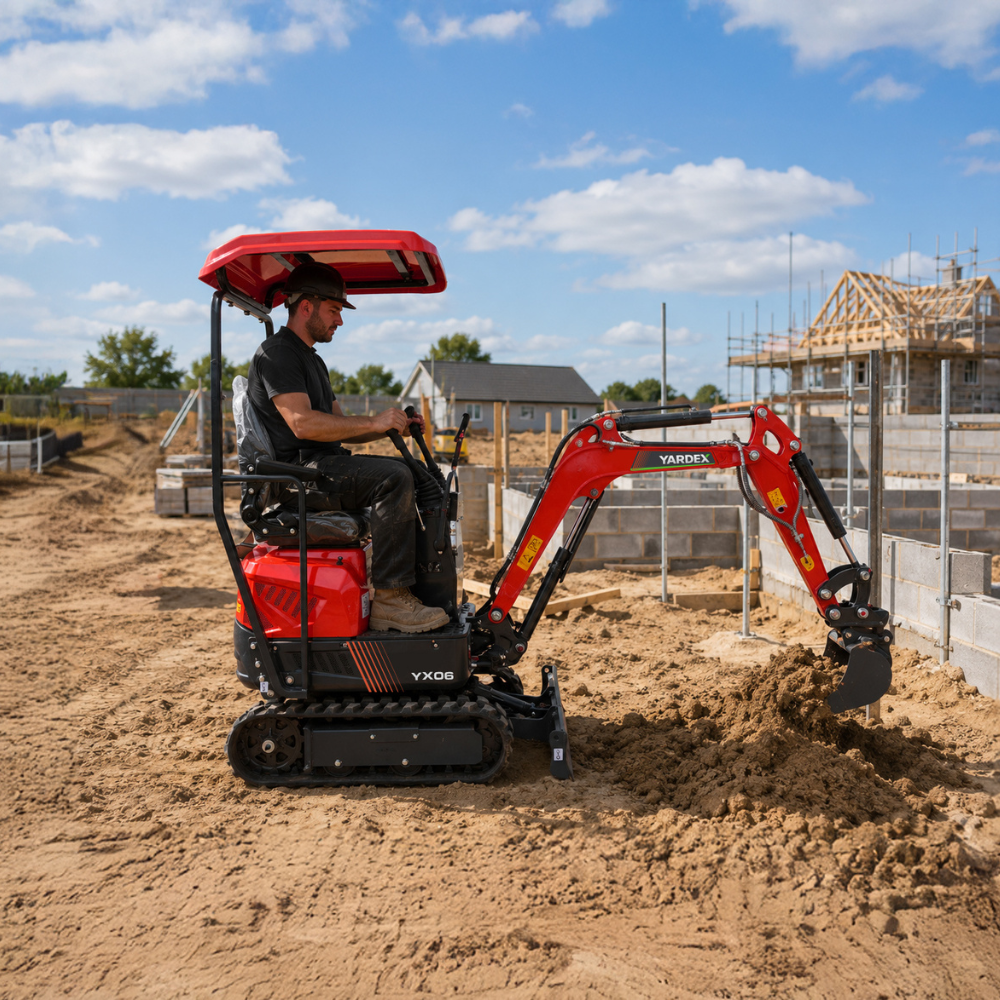

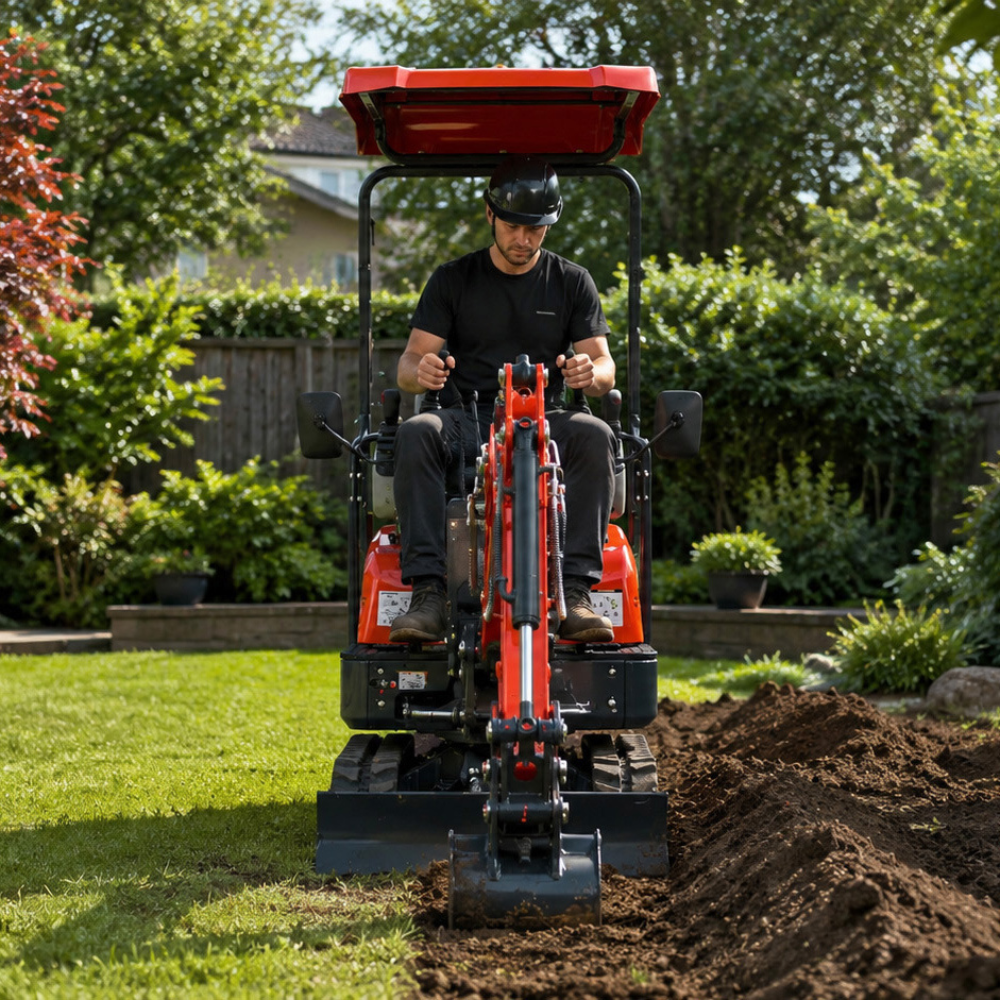

Yardex YX06 Mini Excavator
The compact yet capable Yardex YX06 micro excavator is built for versatility, offering performance in tight access areas. Powered by a reliable Euro 5 compliant petrol engine and featuring smooth hydraulic operation, swing boom functionality and a compact transport-friendly design, it is ideal for landscaping, groundworks, utility work and small construction projects, backed by our UK & Irish parts support network.
- Yardex 2 Year Warranty As Standard
- UK CA Certified
Contact our sales team
For latest prices & availability:
Call +447926 293329
Email randmmachinery@outlook.com
detailed overview
Click for more information.
- Loncin G300FA
- Rated power/speed (kw/rpm) 6.8kW/3600rpm
- Maximum torque/speed (N.m) 20.3N.m/2500rpm
- Displacement (L) 0.302
- Swing speed (r/min) 12
- Grade-ability (%) 35
- Bucket digging force (kN) 7.45
- Arm digging force (kN) 4.5
- Maximum tractive force (kN) 3.8*2
- Rated flow of main pump (L/min) 19.4
- Main safety valve pressure (MPa) 20
- Max.digging height (mm) 1863
- Max.dumping height (mm) 1257
- Max.digging depth mm 978
- Max.vertical wall digging depth mm 601
- Max.digging reach (mm) 2260
- Max.digging reach at ground level (mm) 2174
- Min.swing radius (mm) 1110
- Min.height at min.swing radius (mm) 2117/1619
- Counterweight height (mm) 376
- Ground length -Transportation (mm) 2183
- Overall length (mm) 2235
- Overall width (mm) 700
- Overall height- Boom top (mm) 1619
- Overall height – cab top (mm) 2117
- Counterweight clearance (mm) 376
- Min.ground clearance (mm) 160/52
- Min.tail swing radius (mm) 619
- Track ground length (mm) 773
- Track length (mm) 1081
- Track gauge (mm) 550
- Track width (mm) 150
- Track shoes width (std) (mm) 150
- Turn-able width (mm) 700
- Overall length (mm) 2965
- Overall height (mm) 2230
- Overall width (mm) 750/990
- Ground clearance (mm) 140
