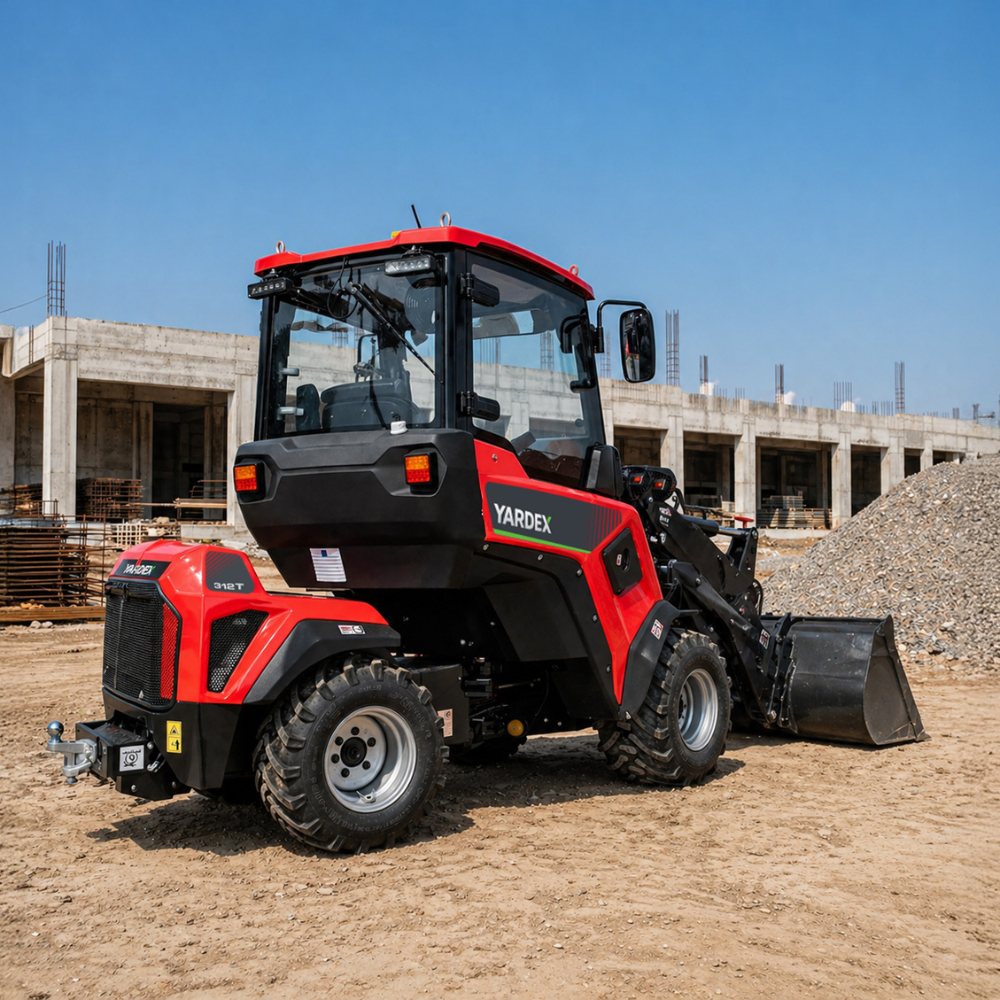

Yardex 312T Wheel Loader

This compact yet versatile telescopic handler offers a 1.2-tonne lift capacity and 3.06m lift height within a compact 2.63m length and 1.25m width. Easy to transport and ideal for tight spaces, it handles harsh environments with its cab design, central articulation joint, anti-stall system and anti-slip valve for maximum traction.

Powered by a reliable 24hp Kubota engine, twin gear pumps and Poclain drive motors, the Yardex 312T also features boom float, hand throttle and a premium proportional electro-hydraulic joystick for smooth, comfortable operation, backed by our UK & Irish parts network.

Contact our sales team

For latest prices & availability:
Call +447926 293329
Email randmmachinery@outlook.com

detailed overview

Click for more information.

  • Kubota 24hp Euro 5 Engine
  • 18.2 kW (Euro V Stage)
  • Turbocharged Water-cooled Diesel
  • Displacement: 1123cc
  • Engine Speed: 3000rpm
  • Cylinders: 3
  • Cooling: Watercooled
  • Hydrostatic Transmission
  • Max Speed: 21 km/h
  • Drive Pump Pressure: 320 (bar)
  • Working Pump Flow: 50 (L/min)
  • Steering: Articulated
  • Service Brake: Hydrostatic
  • Rated Load: 1200Kg
  • Bucket Capacity: 0.38m³
  • Machine Weight: 1660kg
  • Overall Length: 2630mm
  • Overall Width: 1250mm
  • Overall Height: 2000mm
  • Parking Brake: Electric
  • Tyre Size: 26×12-12
  • Fuel Type: Diesel
  • Wheelbase: 1312mm
  • Min Turning Radius: 2050mm
  • Max Lifting Height: 3060mm
  • Max Dumping Height: 3060mm
  • Engine Brand: Kubota
