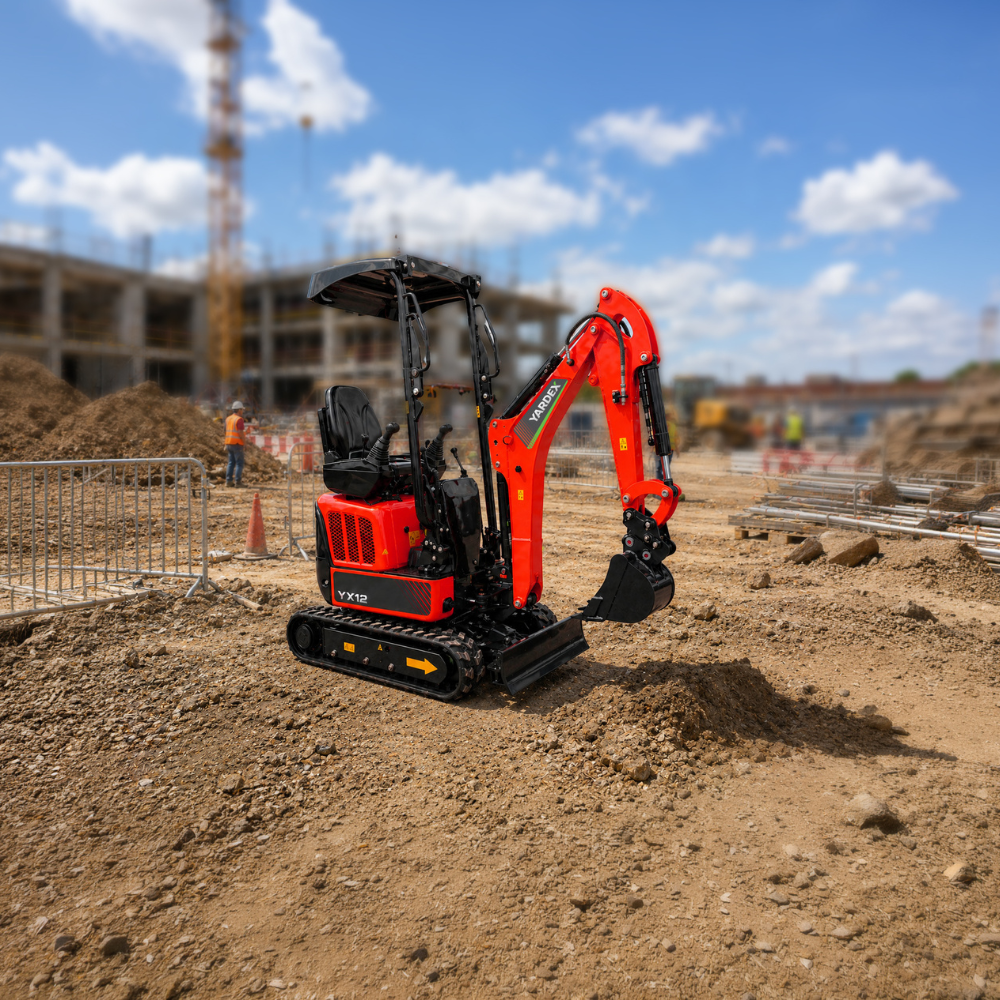

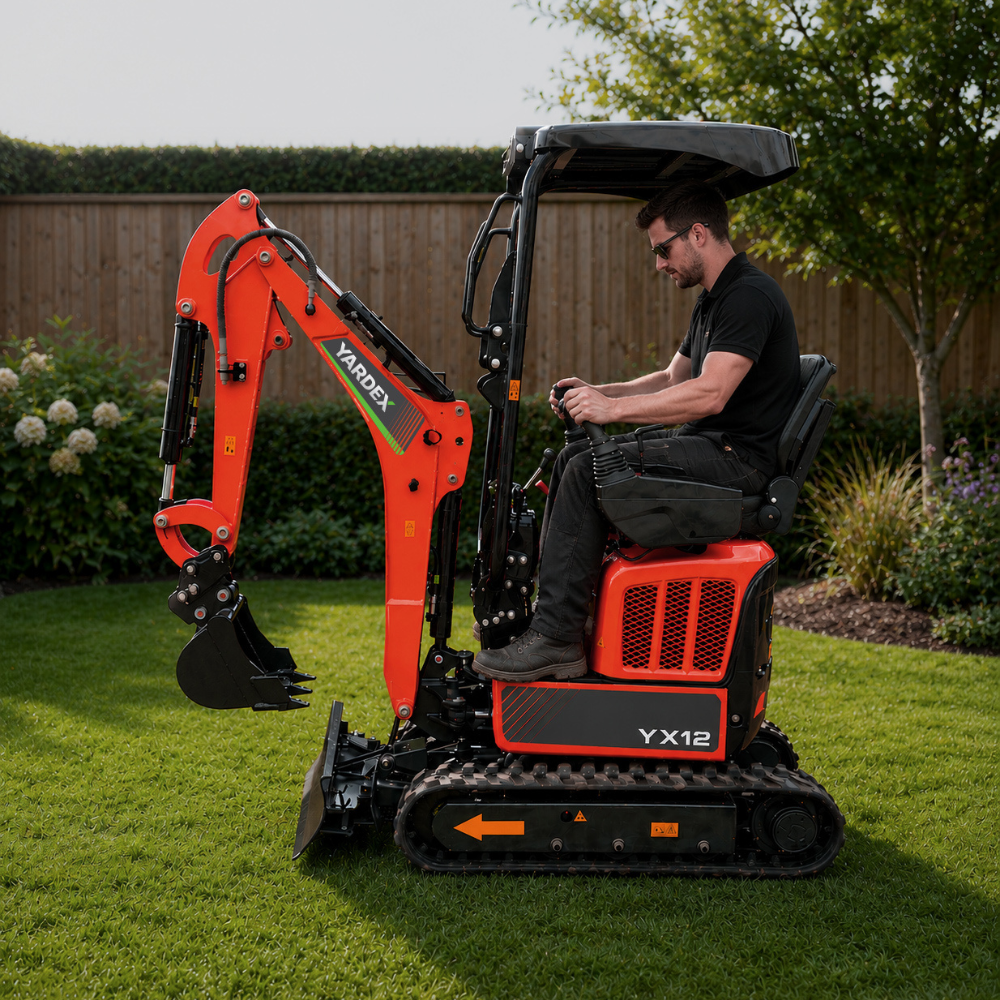

Yardex YX12 Mini Excavator
The compact Yardex 1.2T mini excavator is powered by a reliable Kubota D722 Euro 5 engine and features an expandable undercarriage, swing boom and two-speed travel for excellent versatility on site.
With protected hydraulic hoses, rubber tracks and a mechanical quick hitch, it delivers dependable performance and easy operation in tight access environments, backed by our UK & Irish parts support network.
- Yardex 3 Year Warranty As Standard
- UK CA Certified
Contact our sales team
For latest prices & availability:
Call +447926 293329
Email randmmachinery@outlook.com
detailed overview
Click for more information.
- Brand Kubota
- Model D722
- Displacement (CC) 719
- Output (kW/rpm) 10.2/2500
- Rubber track
- Rubber shoe width (mm): 180
- Track length (mm): 1310
- Traveling speed (km/h): 4
- Gradeability (deg): 58/30
- Max Digging height (mm): 3079
- Max Dumping height (mm): 2225
- Max digging depth (mm): 1805
- Max. Digging radius (mm): 3390
- Min .swing radius (mm): 1273
- Max digging force – Arm (kN): 5.4
- Max digging force – Bucket (kN): 10.4
- Flow rate (L/min): 21
- Hydraulic pressure (Mpa) 17.2
- Flow rate (L/min) 3.1
- Hydraulic pressure (Mpa) 3.9
- Overall length (mm) 2965
- Overall height (mm) 2230
- Overall width (mm) 750/990
- Ground clearance (mm) 140
