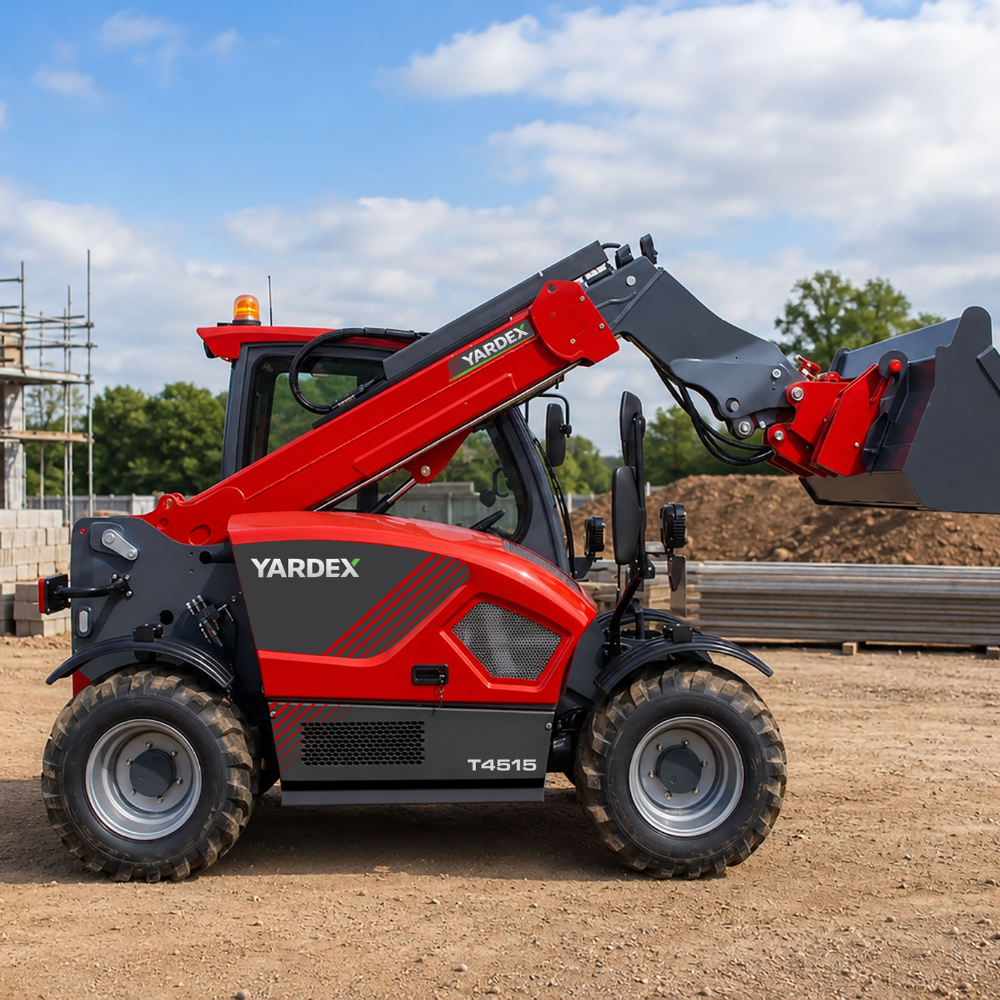

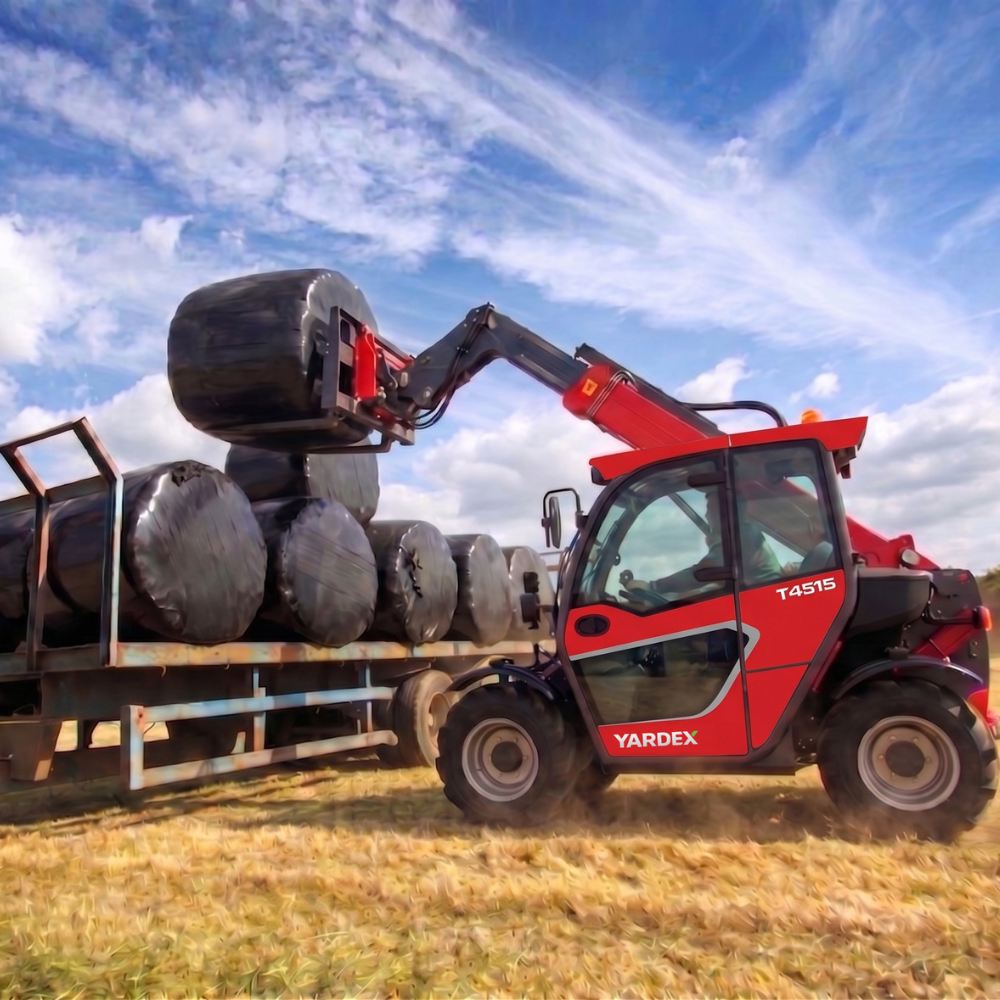

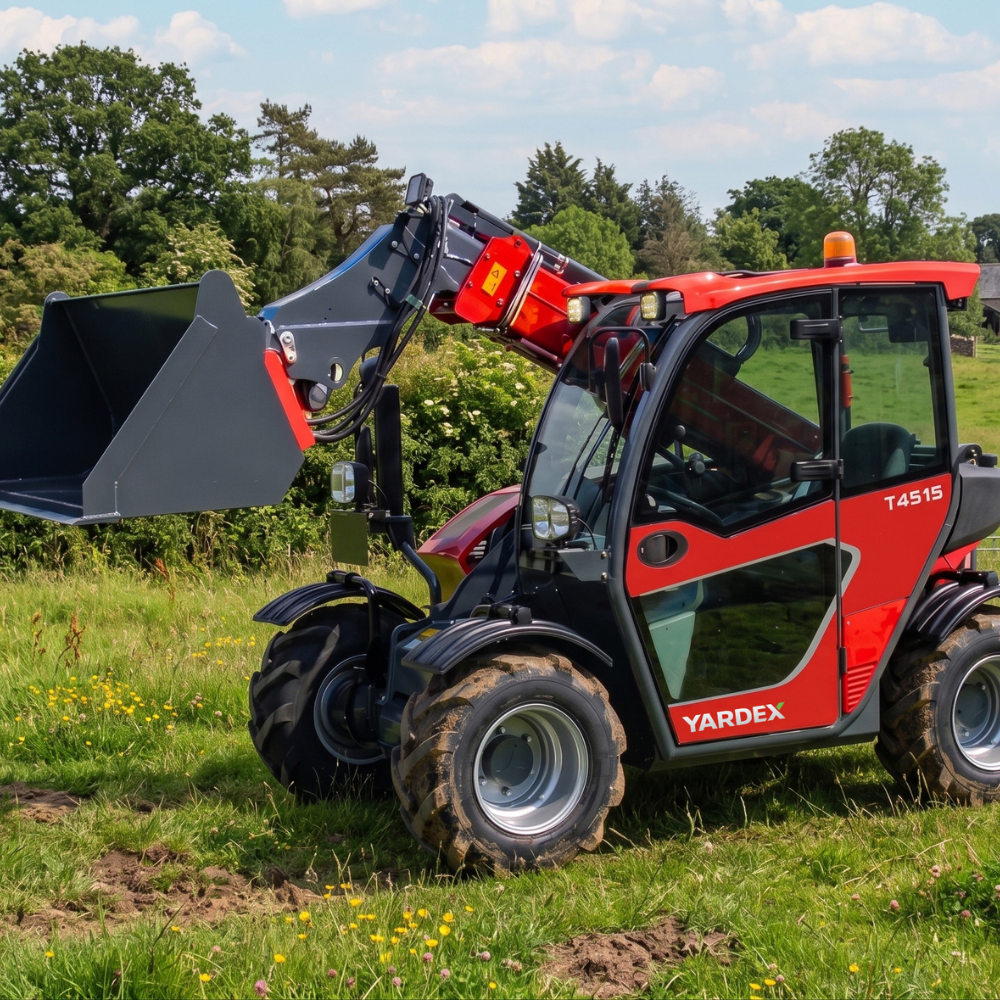

Yardex T4515 Telehandler
The T4515 telehandler is a compact, reliable machine built for demanding environments, combining a powerful turbocharged Yanmar engine with smooth, precise operation thanks to its familiar Italian PWG hydraulics.
Engineered for use across diverse applications and industries, the T4515 offers excellent control, versatility and manoeuvrability. An ideal machine for a wide range of jobs around yards and rough terrain.
- Yardex 3 Year Warranty As Standard
- UK CA Certified
Contact our sales team
For latest prices & availability:
Call +447926 293329
Email randmmachinery@outlook.com
detailed overview
Click for more information.
- Yanmar 3TNV86CT
- 32.4 kW (Euro V Stage)
- Turbocharged Water-cooled Diesel
- Displacement: 1.6L
- Max Torque: 107 Nm
- 3000 Rpm Rated Speed
- Italian PWG Hydrostatic Drive
- 2 Speed: 0-8 km/h | 0-20 km/h
- Planetary Drive Axle
- 3 Steering Modes: 4 Wheel, 2 Wheel & Crab
- Max Lift Capacity: 1500Kg
- Bucket Capacity: 0.45m³
- Operating Lift Weight: 2750Kg
- Max Lift Height (Pivot): 4537mm
- Max Dump Height (Extended): 3570mm
- Max Reach (Extended): 2290mm
- Rollback Angle: 52°
- Dump Angle: 31°
- Italian PWG Hydraulic System
- Oil Flow: 42 L/min
- Pressure: 225 Bar
- Hydraulic Quick Hitch
- Electric Joystick Control
- Third Hydraulic Circuit
- Optional Inching Function
- Length with bucket: 1645mm
- Width: 1245mm
- Total Height: 1564mm
- Wheelbase: 1930mm
- Track Width: 1245mm
- Tyres: 10.0/75-13 or 29 x 12.5-15
